Pulverizer FR04 360º for excavators mini excavators from 5 to 10 tons
Pulverizer FR04 360º for excavators mini excavators from 5 to 10 tons
Lager Meinerzhagen
Darmcher Grund 37
58540 Meinerzhagen
Germany
Produktanfrage
The new FR Series rotary demolition equipment is designed for primary and secondary demolition.

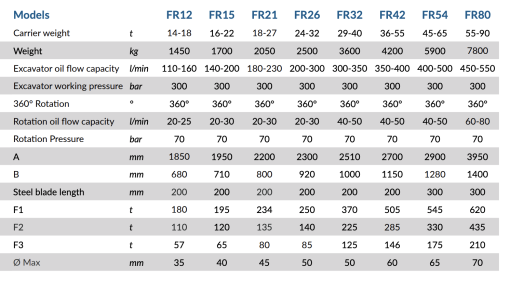

- 12 models for excavators with operating weights from 4 to 150 tons.
- 360° rotation for a controlled demolition
- Integrated pressure relief valve to avoid pressure peaks on the rotary motor
- Double ball slewing ring (from model FR15)
- Gear motor for more power and precision (from model FR21)
- Excellent ratio between speed and performance
- The cylinder is fully protected from possible foreign objects during demolition
- Engineered and built to achieve more power
- Wear parts can be replaced on site
- Optional: speed valve
- Pressure up to 300 bar
❓If you need other design or size, please feel free to contact us ❓
❓Other recording like: MS | Liebherr SW | Verachtert CW | Schaeff | JCB | Direct Attachment – Bolts | Martin | Atlas SMP | Terex | etc ❓
❗ Note: Product photos may vary. Technical changes reserved. ❗

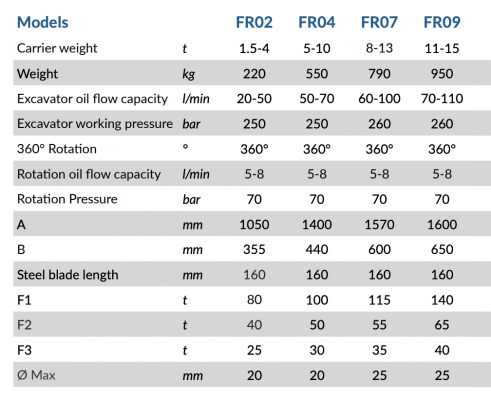

Gewicht: | 500.0 kg |
Gewichtsklasse: | 5-10t |
Ölfluss des Baggers: | 50-70L/min |
Öldruck des Baggers: | 250 bar |
Rotator: | 360° |
Ölfuss des Rotators: | 5-8 liters/min |
Öldruck des Rotators: | 70 bar |

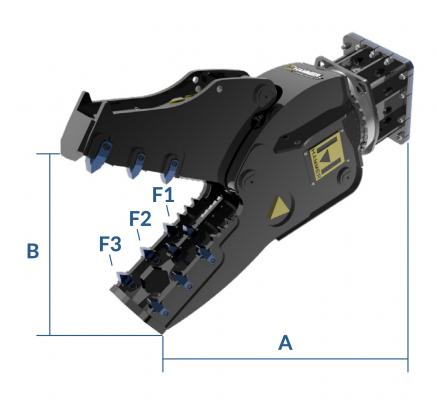

Schneidkraft F1: | 100t |
Schneidkraft F2: | 50t |
Schneidkraft F3: | 30t |
Schnittleistung ø max: | 20mm |
Gesamtlänge A: | 1400mm |
Gesamtlänge B: | 440mm |
